Description
Conversion adapter that can output to the display with HDMI from PC with USB Type-C terminal

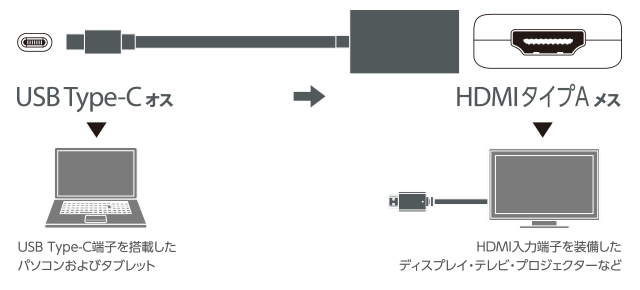

It is a USB Type-C image conversion adapter that can convert video signals of PC, tablet, etc equipped with USB Type-C terminal and output to display · TV · projector etc. equipped with HDMI input terminal.
* It is not possible to convert from HDMI to USB Type-C.
You can use it only by connecting
It is unnecessary for drivers and it can be used only by connecting the devices.
Compatible with HDCP 1.4
It corresponds to HDCP 1.4 of copyright protection technology.
4K 2K compatible
It corresponds to 4K2K which is about 4 times higher resolution than full HD.
Support for mirroring
It supports multi display which displays added display as one screen and mirroring which displays the same screen as the first display.
Compatible with digital audio output
It corresponds to digital audio output.
It is less susceptible to external noise
The inside of the adapter body has a metal shell structure that has high shielding effect and is not easily affected by external noises.
Adopting triple shield cable
A triple shielded cable that is not susceptible to external noise interference is adopted.
Gold plated pin adopted
We adopt gold-plated pins that strongly suppress signal deterioration in rust etc.
Ulla, regardless of whether you can insert
The USB Type-C connector of the new standard allows you to plug in the cable regardless of ULA or Front.
It can output from USB Type-C to HDMI. USB Type-C terminal equipped USB Type-C image conversion adapter that can convert video signals of PC, tablet, etc. and can output to display · TV · projector etc. equipped with HDMI input terminal etc.
| Supported video output device | PC equipped with USB Type-C terminal with video output function · Mac · tablet etc. |
|---|---|
| Supported video display device | Display, TV, projector etc. equipped with HDMI (Type A, 19 pin) terminal etc. |
| Connector shape | USB Type-C Male – HDMI (Type A, 19 pin) female |
| Supported resolutions | Maximum 4 K × 2 K (30 Hz) |
| Shielding method | Triple shield cable, metal shell built-in case |
| cable length | 0.1 m * Connector included |
| Cable thickness | 4.5 mm |
| Plug plating specification | Gold plated pin |
| Color | white / black |
| Body size | Width 32.5 × depth 55.4 × height 11.2 (mm) |
| Other | HDCP 1.4 compatible |
| Environmental considerations | EU RoHS Compliant |
